EN MID 201

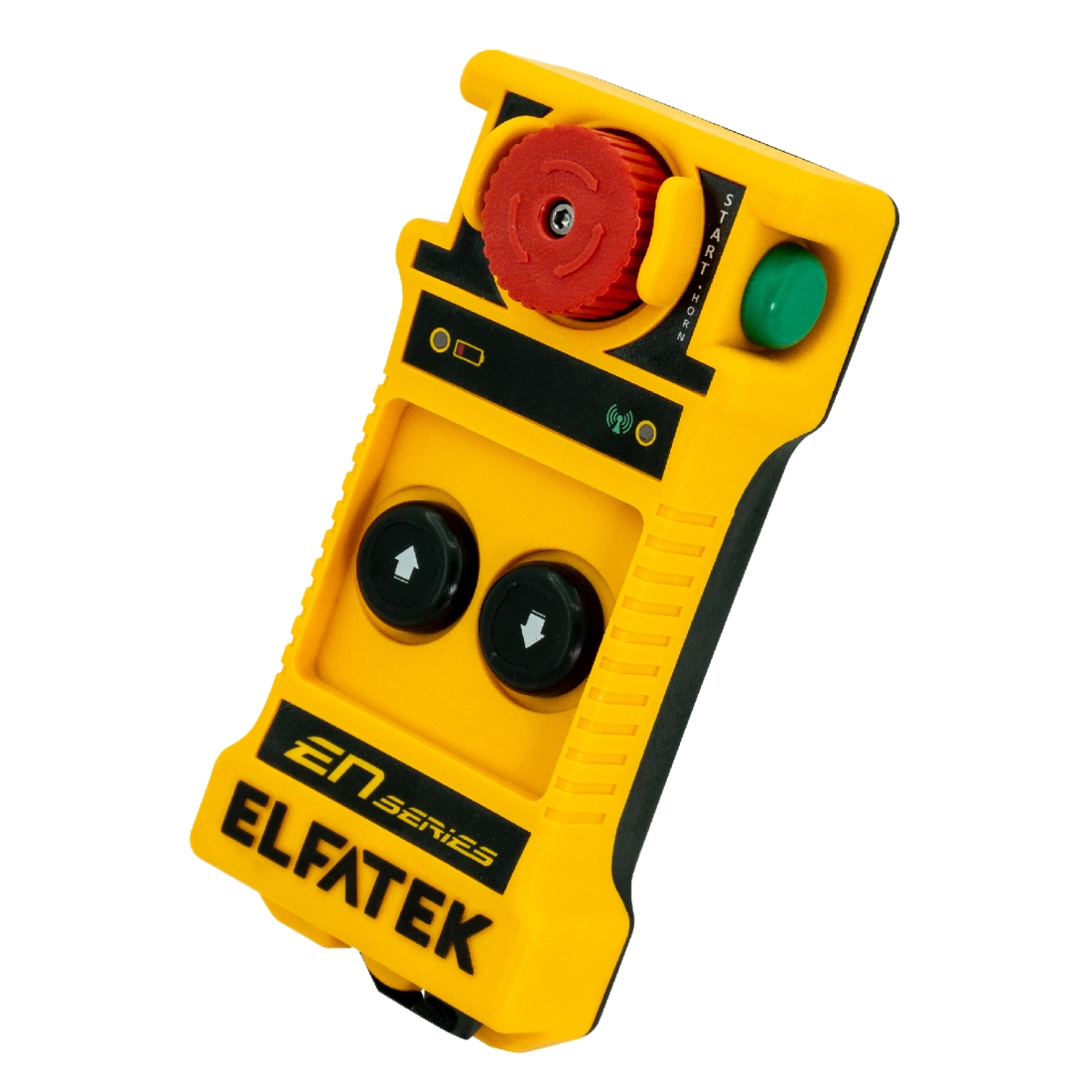

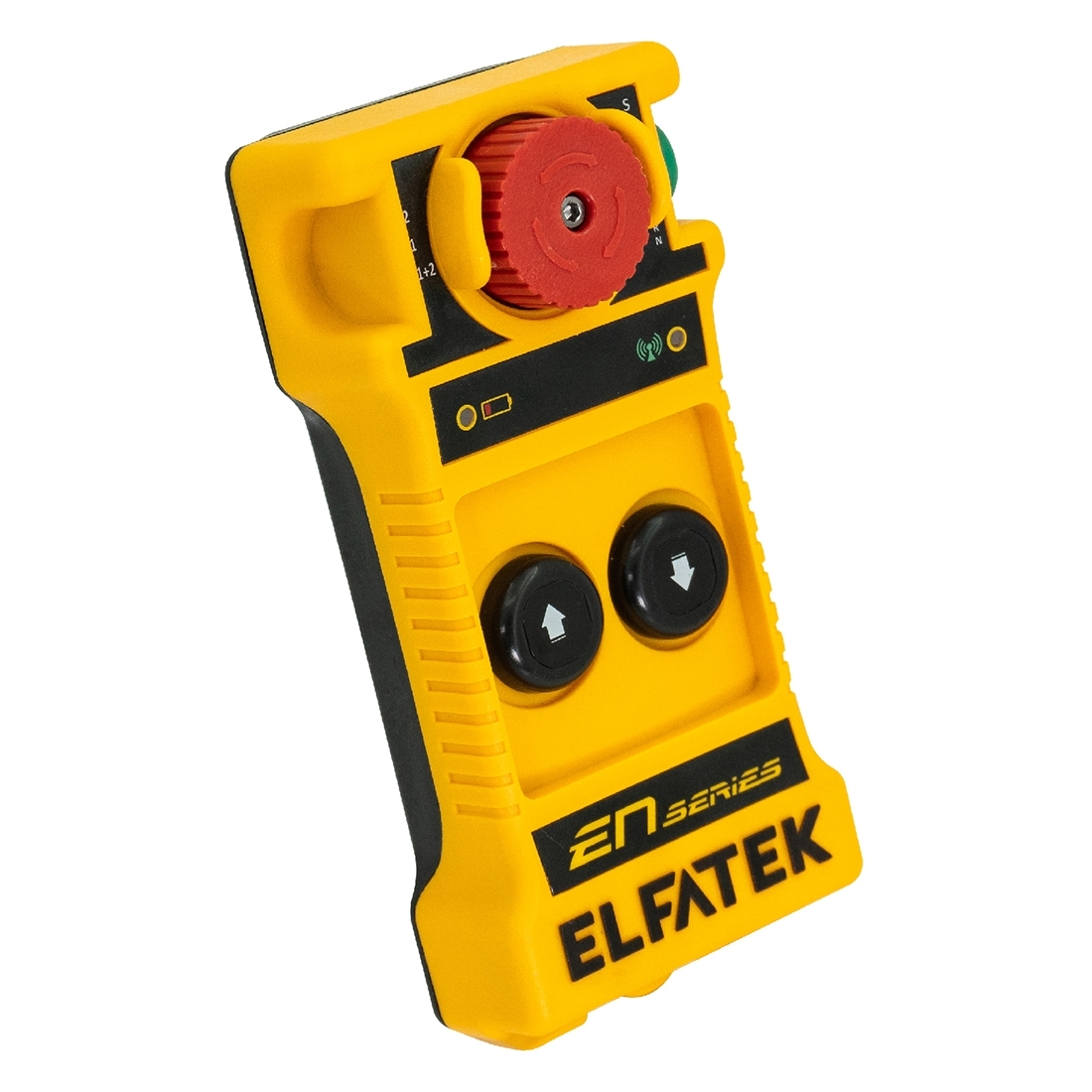

2 button crane remote control set
The EN X, MID, ESX, and MAX designs are specially designed and manufactured by Elfatek Elektronik to provide ease of use. These models are particularly used in construction cranes, overhead cranes, and also in special applications.
The control body is resistant to possible impacts, collisions, and water in different weather conditions. Designed to be user-friendly even when wearing gloves.
Product Features
Design
Start Button
Emergency Stop Button
Quick-Release Cover/Battery
Safety Key
I-Chip
Technical Specifications
Transmitter Technical Specifications
| Model | MID |
| Number of Buttons | 2 |
| Maximum Transmitted Power | 36 mW |
| Supply Voltage | 3 VDC |
| Operating Frequency | 2.4 GHz ISM Band |
| Number of Channels | 80 |
| Operating Range | 100 m |
| RF System Output Power | 10 mW ERP (Internal Antenna) |
| Operating and Storage Temperature | -40 °C ~ +85 °C |
| Enclosure Protection Rating | IP 65 |
| Body Material | Polyamide |
| Button Diameter | 20 mm |
| Battery | 2 x AA Alkaline Battery |
| Continuous Operation with Fully Charged Battery | ≥ 240 hours |
| Operation Time after Low Battery Warning | 30 minutes |
| Weight (2 Buttons, Including Battery) | 0.310 kg |
Receiver Technical Specifications
| Model | MID |
| Maximum Consumed Power | 8.8 W |
| Supply Voltage (Standard) | 180 ~ 230 VAC |
| Supply Voltage (Optional) | 15~35 VAC / 15~50 VDC |
| Operating Frequency | 2.4 GHz ISM Band |
| Number of Channels | 80 |
| Operating Range | 100 m |
| Start Relay Response Time | ≤ 40 ms |
| Command Relay Response Time | ≤ 40 ms |
| Passive Emergency Response Time (EGM Passive) | ≤ 40 ms |
| Operating and Storage Temperature | -40 °C ~ +85 °C |
| Enclosure Protection Rating | IP 65 |
| Body Material | Polyamide |
| Maximum Capacity of Control Relays | 10A 250VAC |
| Maximum Capacity of Status Relays | 8A 250VAC |
| Weight (Including Enclosure) | 1.5 kg |
| Size (Small) | 235 × 150 × 120 mm |
| Size (Medium) | 320 × 170 × 120 mm |
| Size (Large) | 335 × 195 × 130 mm |
Two-Button Crane Remote Control Set
