Français4 Button Crane Remote Control Set
EN MID 402-S

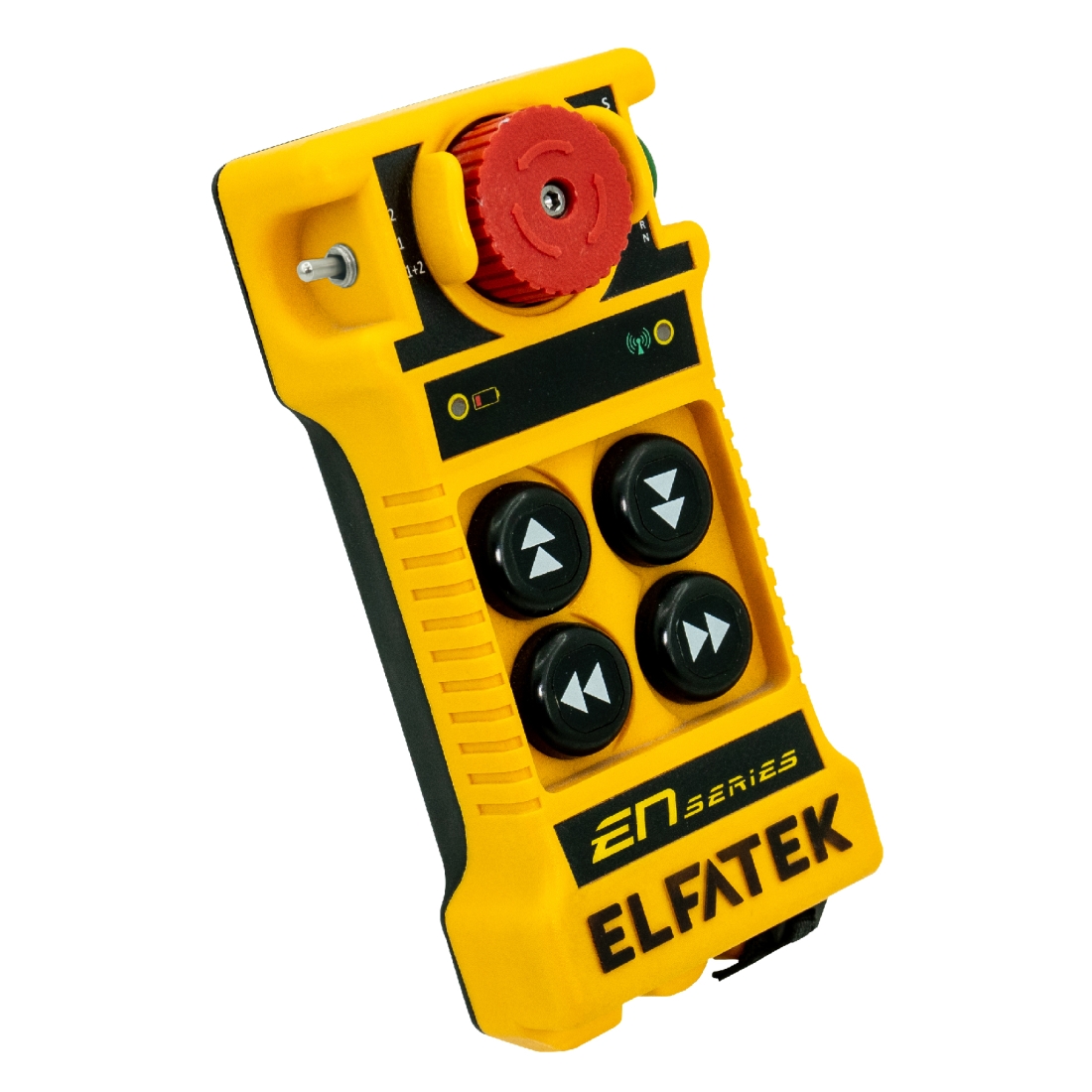

4 Button Crane Remote Control Set
EN X, MID, ESX, and MAX designs are specially designed and manufactured by Elfatek Elektronik to provide ease of use. These models are particularly used in construction cranes, overhead cranes, and also in special applications.
The controller body is resistant to impacts, collisions, and water in different climate conditions. It is designed to be used with gloves.
Product Features
Design
Start Button
Emergency Stop Button
Quick-Release Cover/Battery
Safety Key
I-Chip
Selector Key
Technical Specifications
Transmitter Technical Specifications
| Model | MID |
| Number of Buttons | 4 |
| Maximum Output Power | 36 mW |
| Supply Voltage | 3 VDC |
| Operating Frequency | 2.4 GHz ISM Band |
| Number of Channels | 80 |
| Operating Range | 100 m |
| RF System Output Power | 10 mW ERP (Internal Antenna) |
| Operating and Storage Temperature | -40 °C ~ +85 °C |
| Enclosure Protection Rating | IP 65 |
| Enclosure Material | Polyamide |
| Button Diameter | 20 mm |
| Battery | 2 x AA Alkaline Battery |
| Continuous Operation with Fully Charged Battery | ≥ 240 hours |
| Operating Time After Low Battery Warning | 30 minutes |
| Weight (4 Buttons, Including Battery) | 0.310 kg |
Receiver Technical Specifications
| Model | MID |
| Maximum Input Power | 8.8 W |
| Supply Voltage (Standard) | 180 ~ 230 VAC |
| Supply Voltage (Optional) | 15~35 VAC / 15~50 VDC |
| Operating Frequency | 2.4 GHz ISM Band |
| Number of Channels | 80 |
| Operating Range | 100 m |
| Start Relay Response Time | ≤ 40 ms |
| Command Relay Response Time | ≤ 40 ms |
| Passive Emergency Response Time (EGM Passive) | ≤ 40 ms |
| Operating and Storage Temperature | -40 °C ~ +85 °C |
| Enclosure Protection Rating | IP 65 |
| Enclosure Material | Polyamide |
| Max. Capacity of Control Relay | 10A 250VAC |
| Max. Capacity of Status Relay | 8A 250VAC |
| Weight (Including Box) | 1.5 kg |

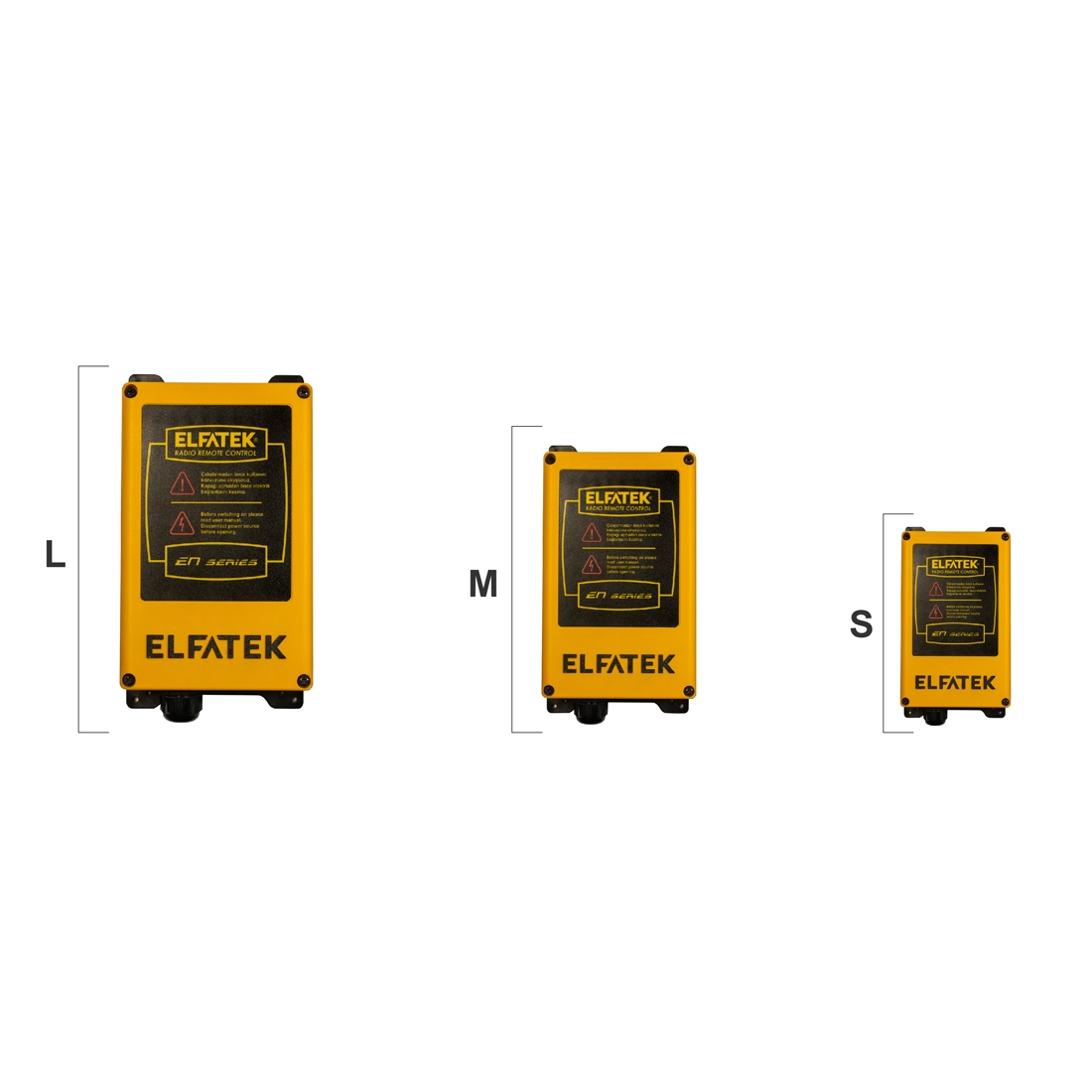

| Size (Small) | 235 × 150 × 120 mm |
| Size (Medium) | 320 × 170 × 120 mm |
| Size (Large) | 335 × 195 × 130 mm |
Four-Button Crane Remote Control Set
