Français4 Button Crane Remote Control Set
EN MID 401-S

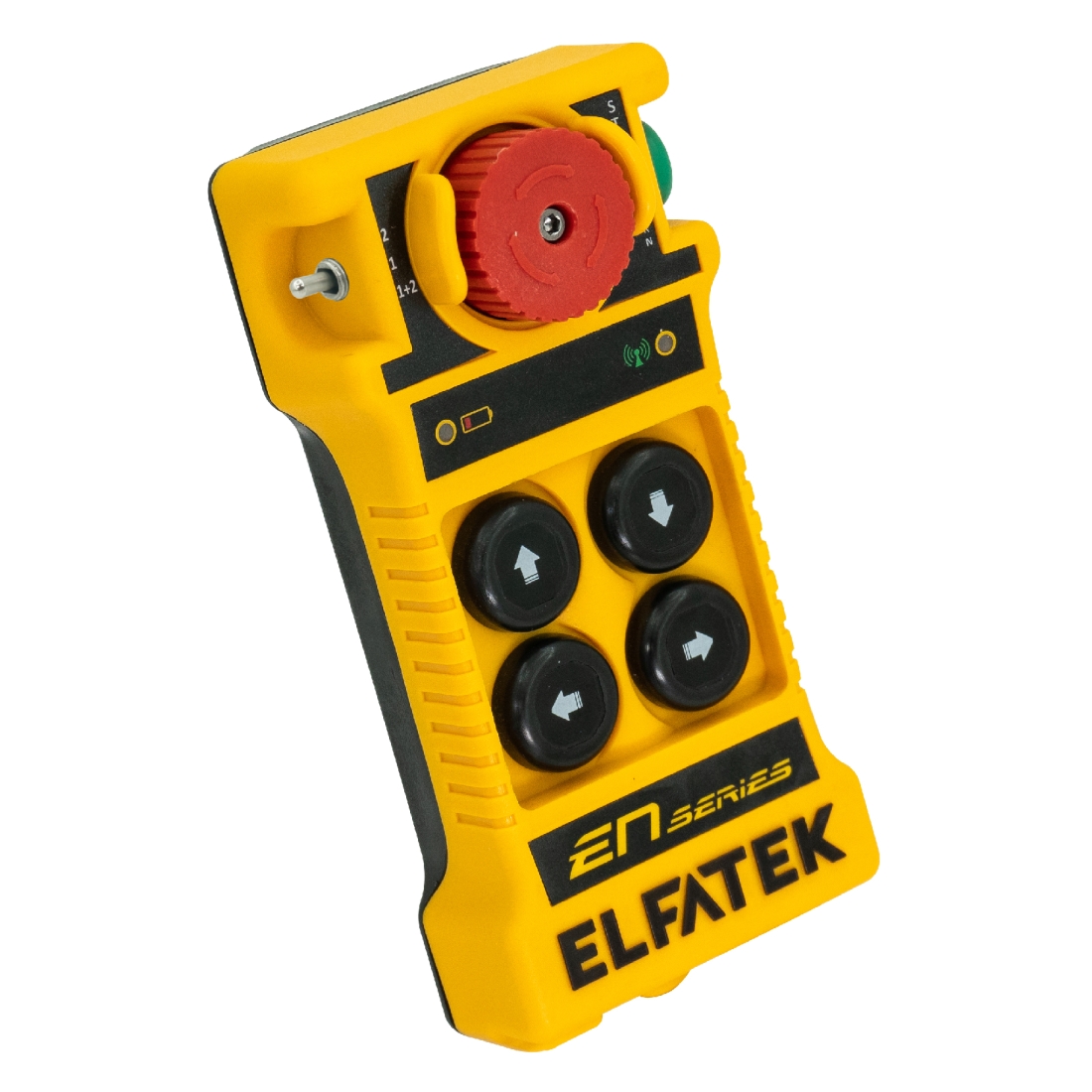

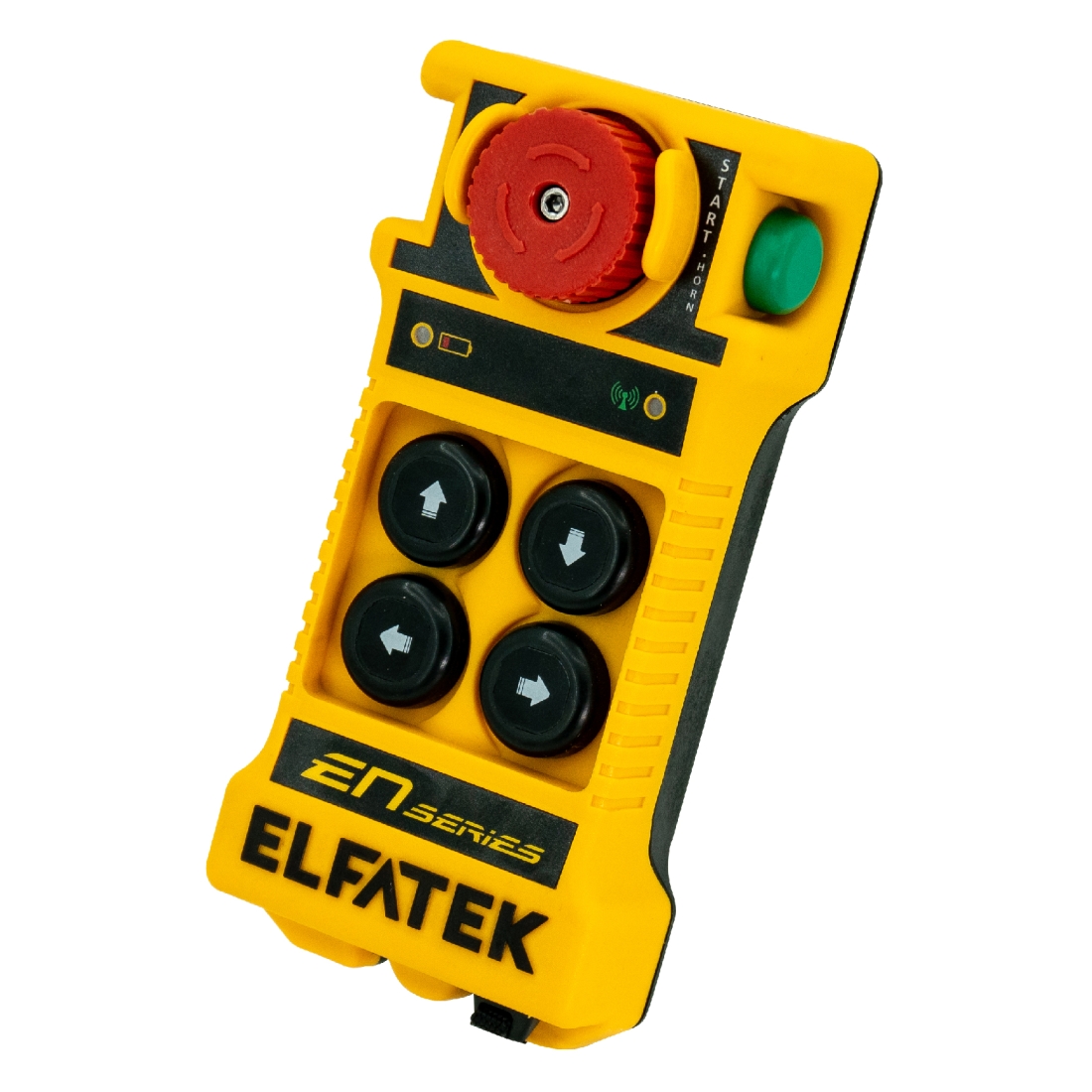

4 Button Crane Remote Control Set
The designs of EN X, MID, ESX, and MAX are specially developed by Elfatek Elektronik to provide ease of use. These models can be used especially in construction cranes, overhead cranes, as well as special applications. They are found in many sectors such as rolling mills, iron-steel, and marble industries.
The control body is resistant to impacts and collisions. The control buttons are single and dual speed, suitable for use with gloves.
Product Features
Design
Start Button
Emergency Stop Button
Quick-Release Cover/Battery
Safety Key
I-Chip
Selector Key
Technical Specifications
Transmitter Technical Specifications
| Model | MID |
| Number of Buttons | 4 |
| Maximum Taken Power | 36 mW |
| Supply Voltage | 3 VDC |
| Operating Frequency | 2.4 GHz ISM Band |
| Number of Channels | 80 |
| Operating Distance | 100 m |
| RF System Output Power | 10 mW ERP (Internal Antenna) |
| Operating and Storage Temperature | -40 °C ~ +85 °C |
| Enclosure Protection Rating | IP 65 |
| Enclosure Material | Polyamide |
| Button Diameter | 20 mm |
| Battery | 2 x AA Alkaline Battery |
| Continuous Operation with Fully Charged Battery | ≥ 240 hours |
| Operating Time After Low Battery Warning | 30 minutes |
| Weight (4 Buttons, Including Battery) | 0.310 kg |
Receiver Technical Specifications
| Model | MID |
| Maximum Taken Power | 8.8 W |
| Supply Voltage (Standard) | 180 ~ 230 VAC |
| Supply Voltage (Optional) | 15~35 VAC / 15~50 VDC |
| Operating Frequency | 2.4 GHz ISM Band |
| Number of Channels | 80 |
| Operating Distance | 100 m |
| Start Relay Response Time | ≤ 40 ms |
| Command Relay Response Time | ≤ 40 ms |
| Passive Emergency Response Time (EGM Passive) | ≤ 40 ms |
| Operating and Storage Temperature | -40 °C ~ +85 °C |
| Enclosure Protection Rating | IP 65 |
| Enclosure Material | Polyamide |
| Maximum Capacity of Control Relays | 10A 250VAC |
| Maximum Capacity of Status Relays | 8A 250VAC |
| Weight (Including Box) | 1.5 kg |
| Size (Small) | 235 × 150 × 120 mm |
| Size (Medium) | 320 × 170 × 120 mm |
| Size (Large) | 335 × 195 × 130 mm |
Four-Button Crane Remote Control Kit
