Français6 Button Crane Remote Control Set
EN MID 601-S

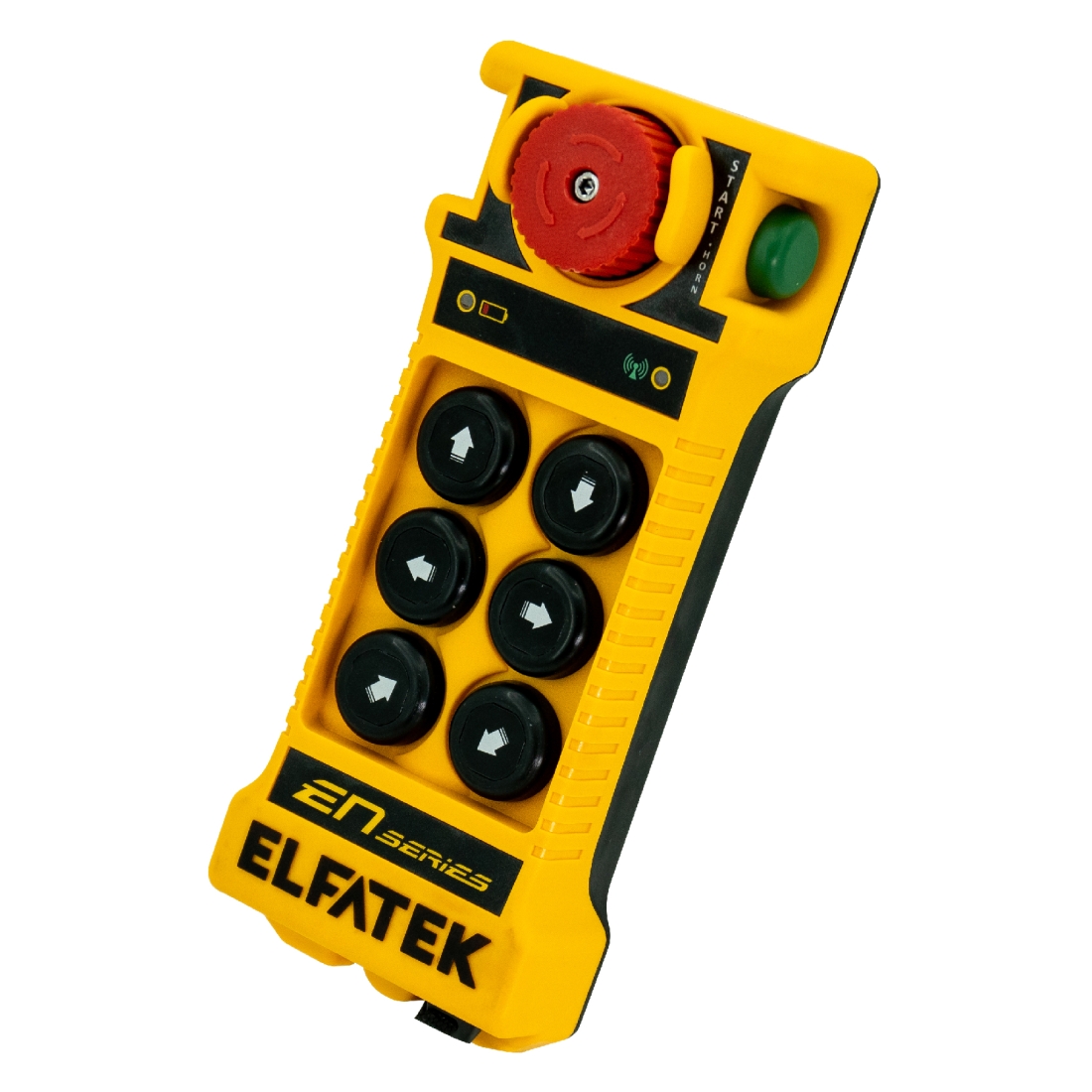

6 Button Crane Remote Control Set
The EN X, MID, ESX, and MAX designs are specially designed and manufactured by Elfatek Elektronik to provide ease of use. These models are particularly used in construction cranes, overhead cranes, and also in special applications.
The control body is resistant to possible impacts, collisions, and water in different climatic conditions. It is designed to be suitable for use with gloves.
Product Features
Design
Start Button
Emergency Stop Button
Quick-Release Cover/Battery
Safety Key
I-Chip
Selector Key
Technical Specifications
Transmitter Technical Specifications
| Model | MID |
| Number of Buttons | 6 |
| Maximum Draw Power | 36 mW |
| Supply Voltage | 3 VDC |
| Operating Frequency | 2.4 GHz ISM Band |
| Number of Channels | 80 |
| Operating Distance | 100 m |
| RF System Output Power | 10 mW ERP (Internal Antenna) |
| Operating and Storage Temperature | -40 °C ~ +85 °C |
| Enclosure Protection Rating | IP 65 |
| Enclosure Material | Polyamide |
| Button Diameter | 20 mm |
| Battery | 2 x AA Alkaline Battery |
| Continuous Operation with Fully Charged Battery | ≥ 240 hours |
| Operating Time after Low Battery Warning | 30 minutes |
| Weight (6 Buttons, Including Battery) | 0.345 kg |
Receiver Technical Specifications
| Model | MID |
| Maximum Draw Power | 8.8 W |
| Supply Voltage (Standard) | 48~110-220 VAC |
| Optional Supply Voltages | 15~35 VAC / 15~50 VDC |
| 380 VAC (Optional) | Only one can be used |
| Operating Frequency | 2.4 GHz ISM Band |
| Number of Channels | 80 |
| Operating Distance | 100 m |
| Start Relay Response Time | ≤ 40 ms |
| Command Relay Response Time | ≤ 40 ms |
| Passive Emergency Response Time (EGM Passive) | ≤ 40 ms |
| Operating and Storage Temperature | -40 °C ~ +85 °C |
| Enclosure Protection Rating | IP 65 |
| Enclosure Material | Polyamide |
| Maximum Capacity of Control Relays | 10A 250VAC |
| Maximum Capacity of Status Relays | 8A 250VAC |
| Weight (Including Enclosure) | 2.2 kg |
| Size (Small) | 235 × 150 × 120 mm |
| Size (Medium) | 320 × 170 × 120 mm |
| Size (Large) | 335 × 195 × 130 mm |
Six-Button Crane Remote Control Set
