EN MAX 1202

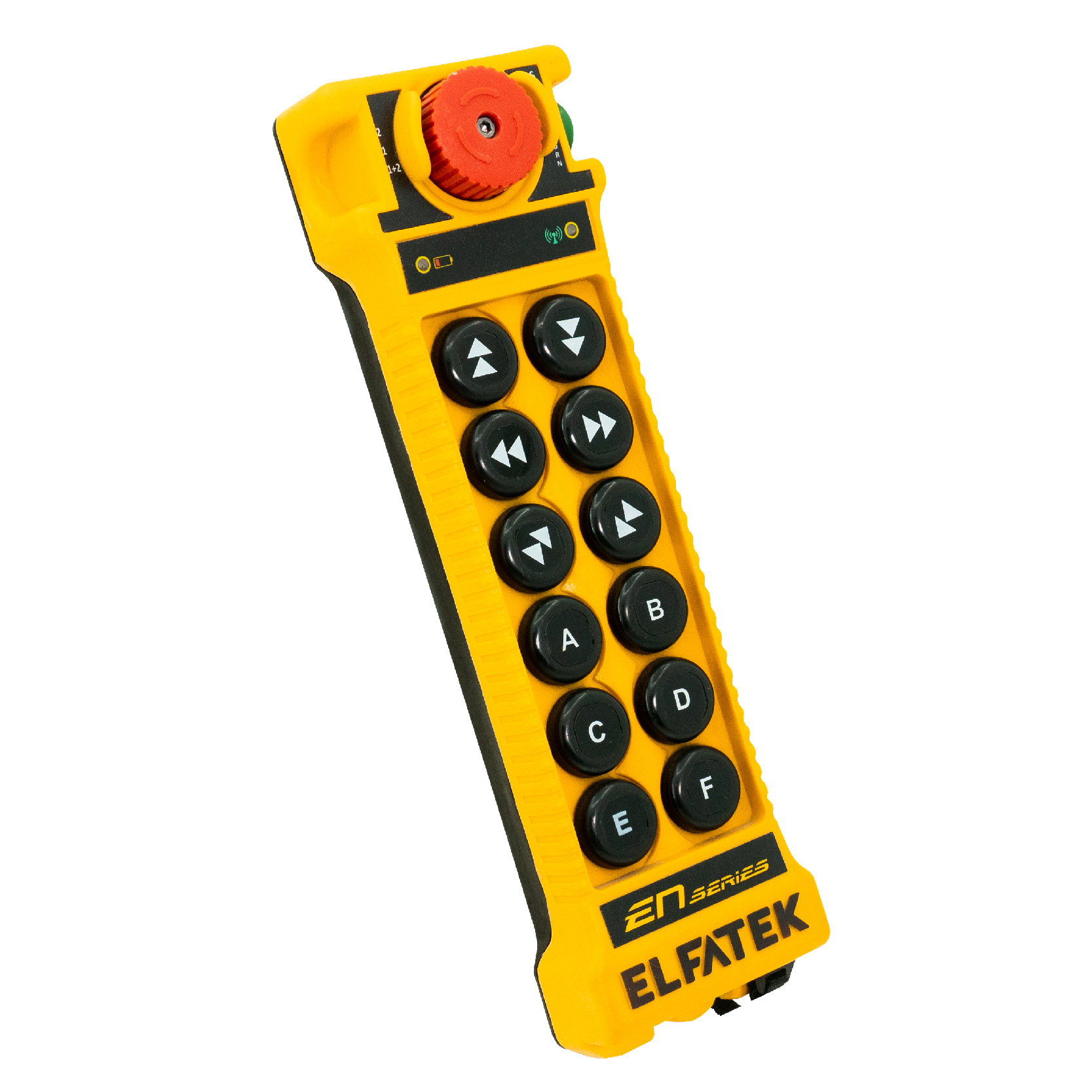

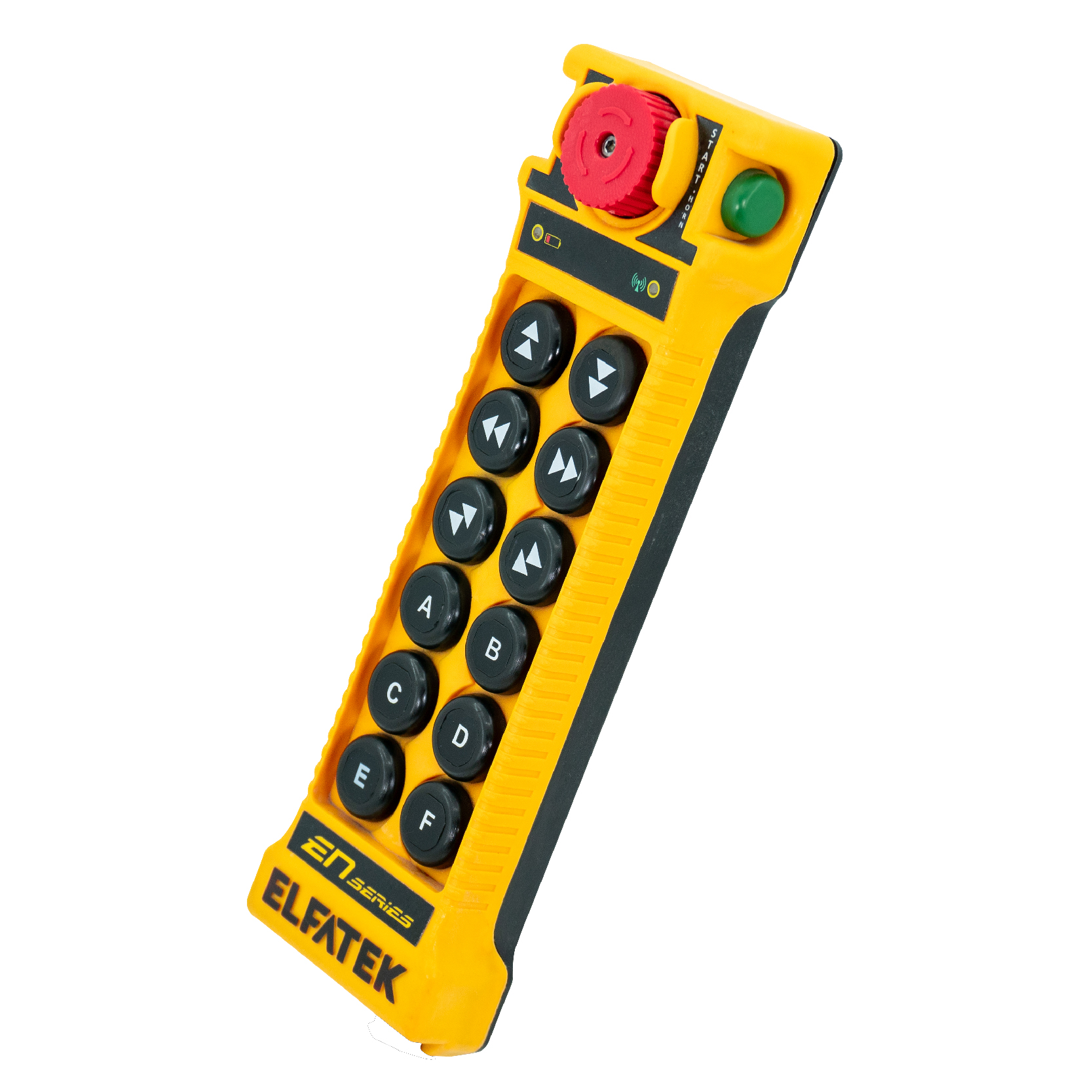

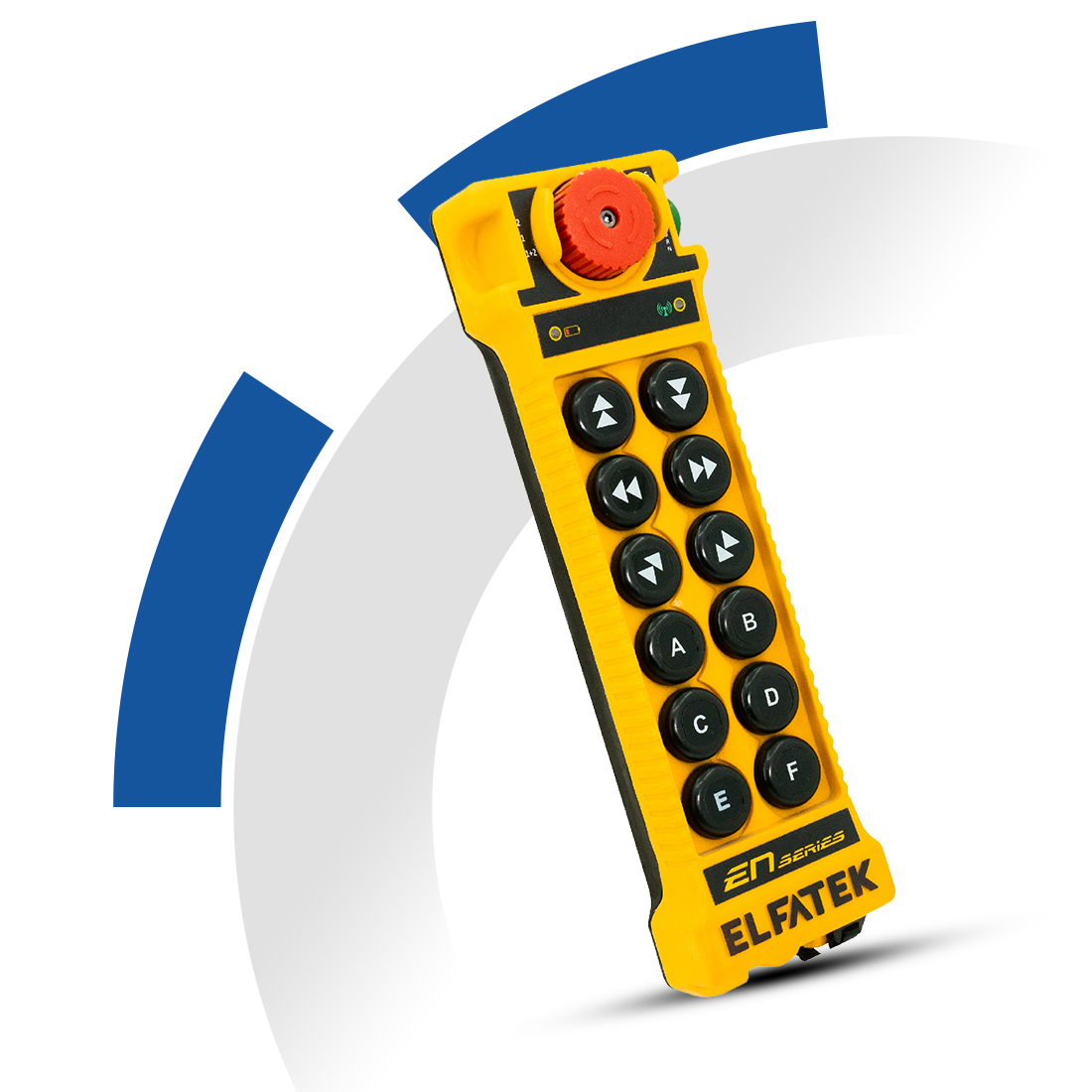

12 Button Crane Remote Control Set
The EN X, MID, ESX, and MAX designs are specifically designed and manufactured by Elfatek Elektronik to provide ease of use. These models are especially used in construction cranes, overhead cranes, and special applications.
The control body is resistant to impact, shocks, and water in different climate conditions. It is designed to be compatible with glove usage.
Product Features
Design
Start Button
Emergency Stop Button
Quick-Release Cover/Battery
Safety Key
I-Chip
Technical Specifications
Transmitter Technical Specifications
| Model | MAX |
| Number of Buttons | 12 |
| Maximum Pulled Power | 36 mW |
| Supply Voltage | 3 VDC |
| Operating Frequency | 2.4 GHz ISM Band |
| Number of Channels | 80 |
| Operating Range | 100 m |
| RF System Output Power | 10 mW ERP (Internal Antenna) |
| Operating and Storage Temperature | -40 °C to +85 °C |
| Enclosure Protection Rating | IP 65 |
| Enclosure Material | Polyamide |
| Button Diameter | 20 mm |
| Battery | 2xAA Alkaline Battery |
| Continuous Operation with Fully Charged Battery | ≥ 240 hours |
| Operating Time after Low Battery Warning | 30 minutes |
| 12 Button (Including Battery) | 0.440 kg |
Receiver Technical Specifications
| Model | MAX |
| Maximum Pulled Power | 10 W |
| Supply Voltage | 48–110–220 VAC (Standard) |
| Optional Supply Voltages | 15–35 VAC / 15–50 VDC / 380 VAC |
| Operating Frequency | 2.4 GHz ISM Band |
| Number of Channels | 80 |
| Operating Range | 100 m |
| Start Relay Response Time | ≤ 65 ms |
| Command Relay Response Time | ≤ 65 ms |
| Response Time for Passive Emergency (EGM Passive) | ≤ 70 ms |
| Operating and Storage Temperature | -40 °C to +85 °C |
| Enclosure Protection Rating | IP 65 |
| Enclosure Material | Polyamide |
| Maximum Capacity of Control Relays | 10A 250VAC |
| Maximum Capacity of Stop Relays | 8A 250VAC |
| Weight (Including Box) | 2.5 kg |

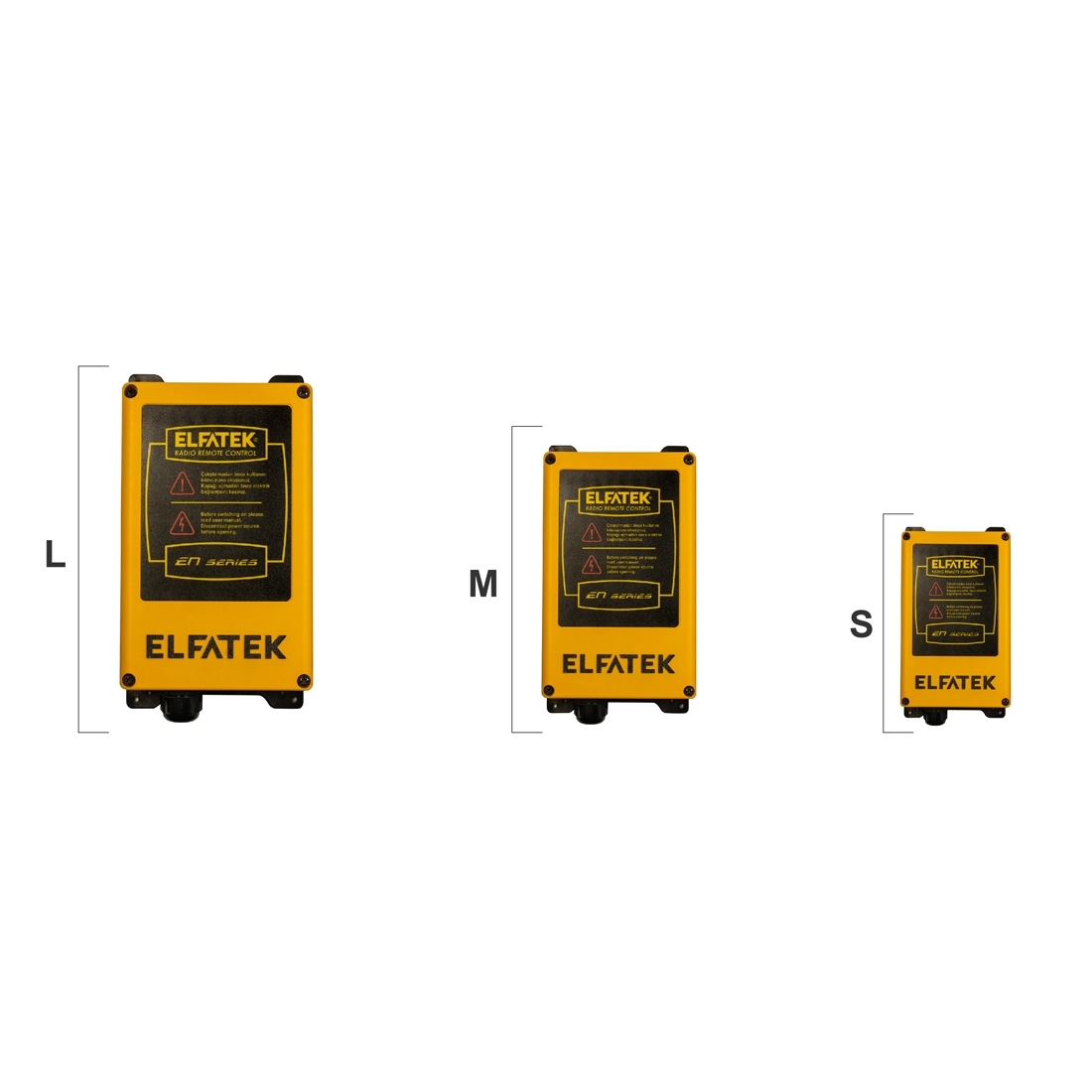

| Small Size (HxWxD) | 235x150x120 mm |
| Medium Size (HxWxD) | 320x170x120 mm |
| Large Size (HxWxD) | 335x195x130 mm |
