EN MAX 601-A

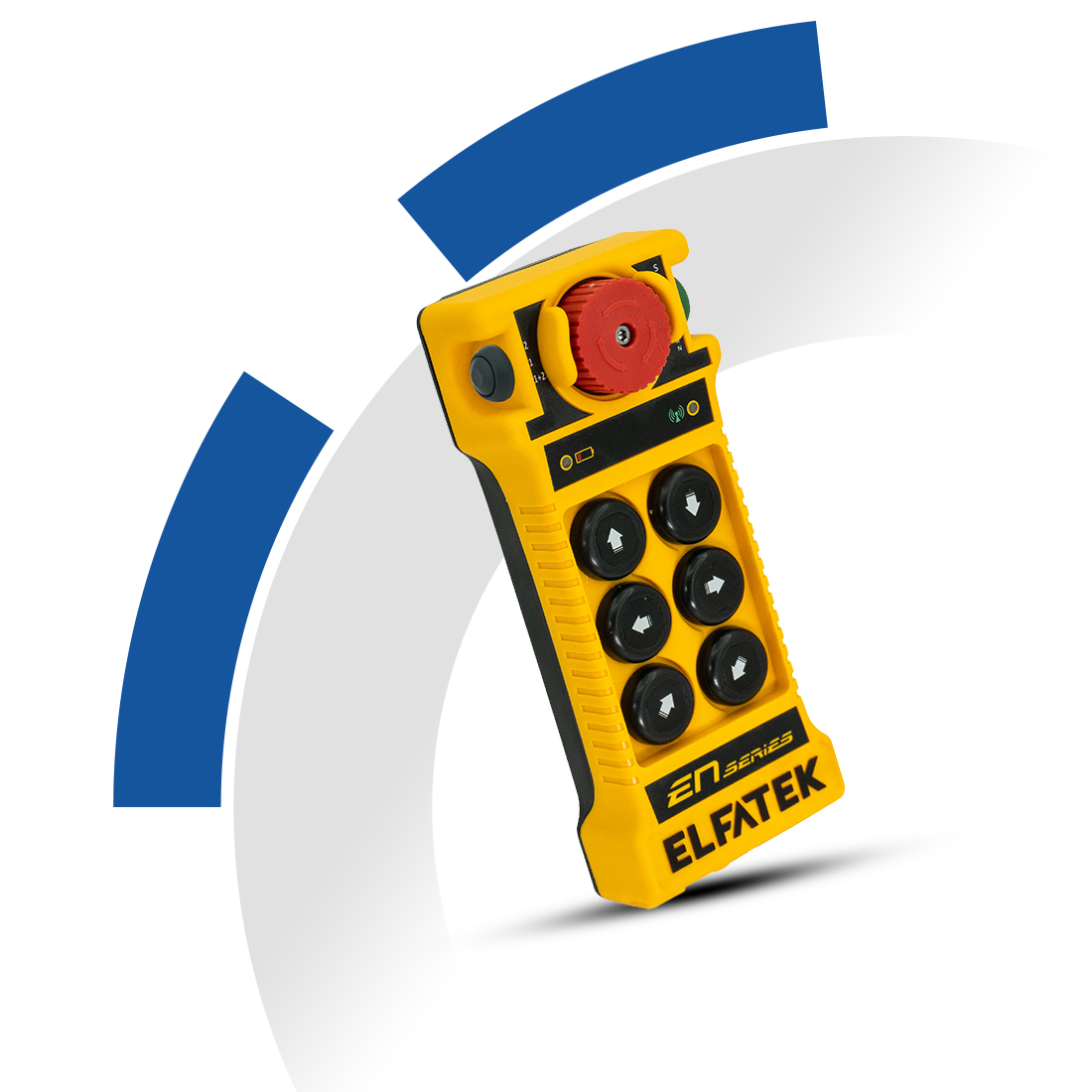

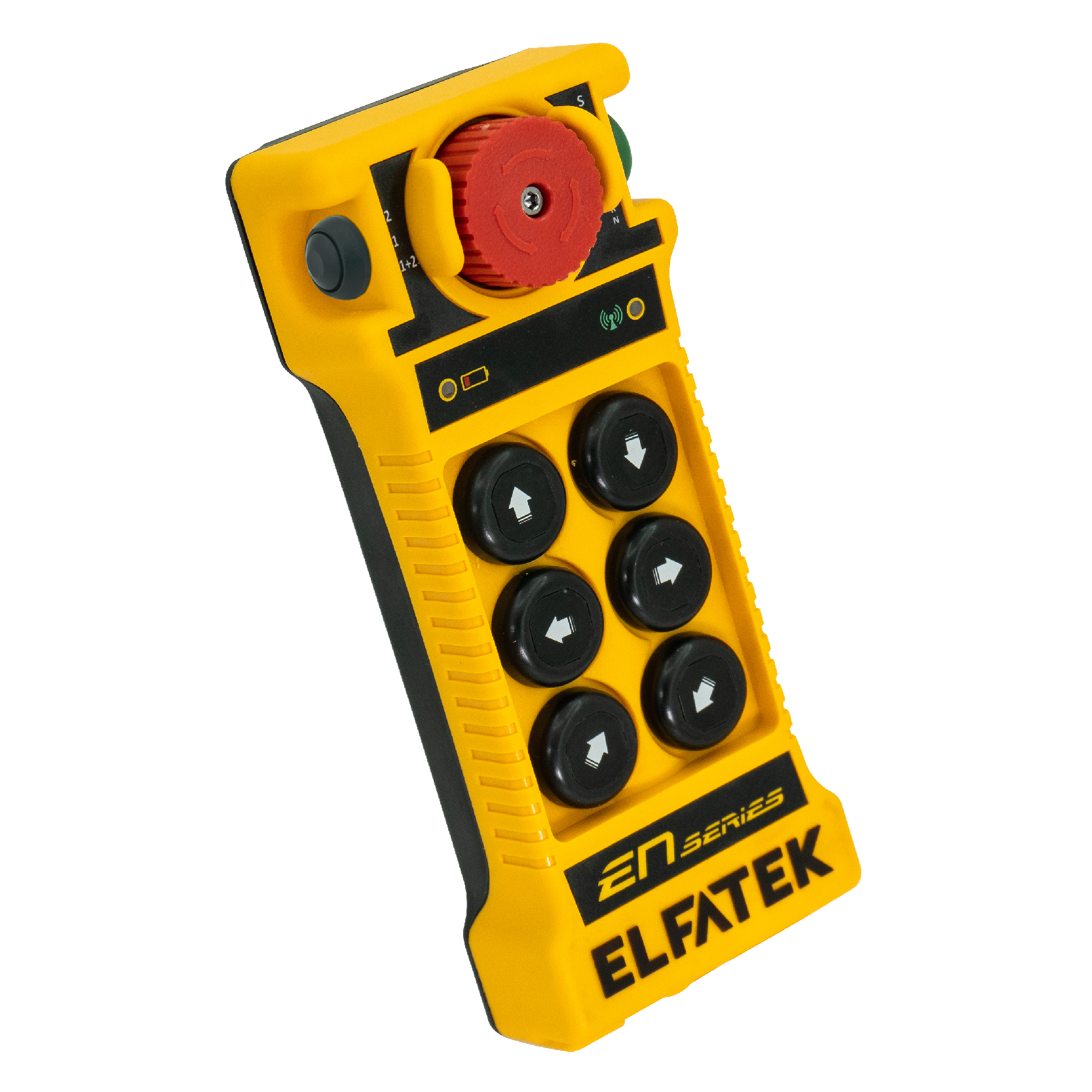

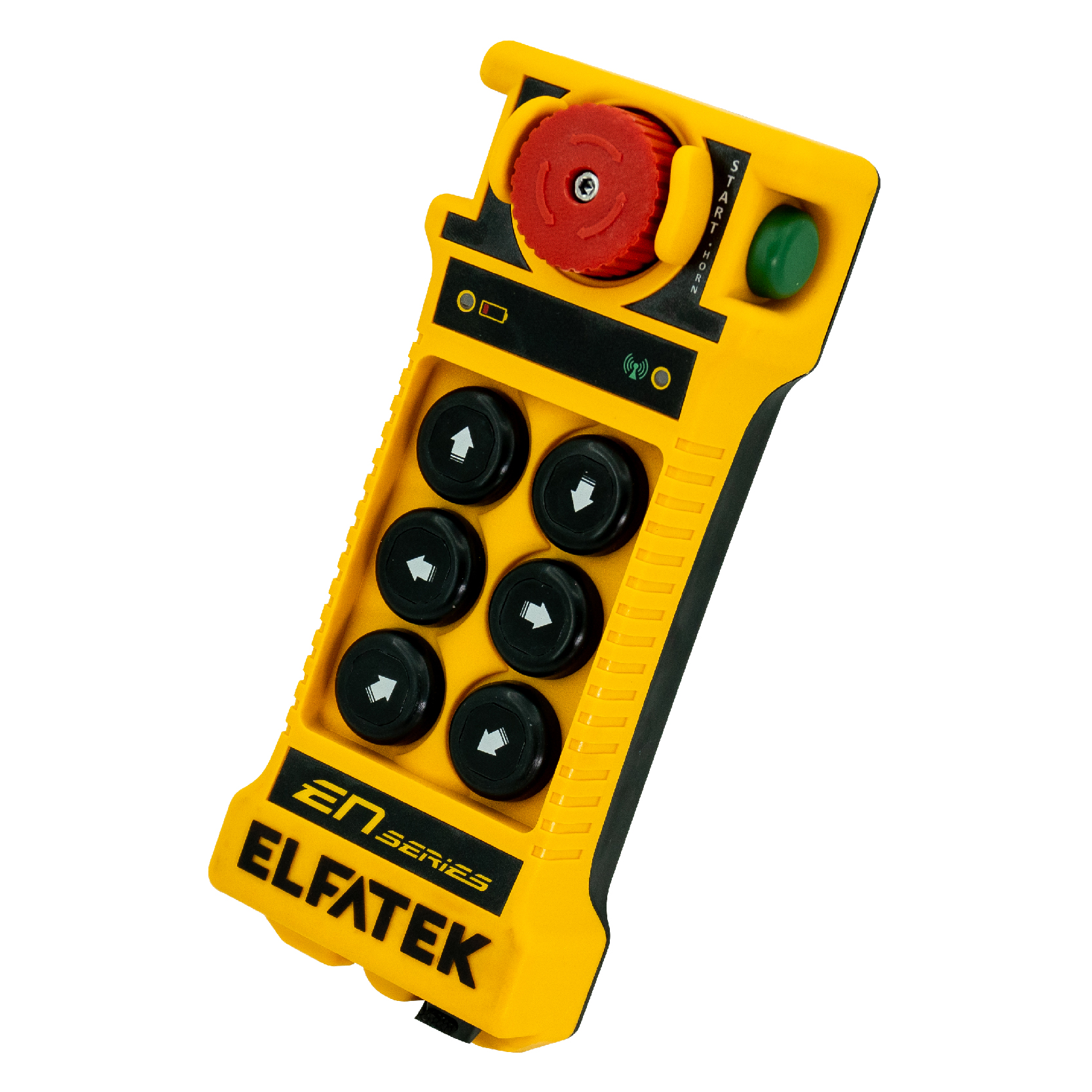

6 Button Crane Remote Control Set
EN X, MID, ESX, and MAX designs are specially designed and produced by Elfatek Elektronik to provide ease of use. These models are particularly used in construction cranes, overhead cranes, and also in special applications.
The control body is resistant to impact, collisions, and water in different climatic conditions. It is designed to be suitable for use with gloves.
Product Features
Design
Start Button
Emergency Stop Button
Quick-Release Cover/Battery
Safety Key
I-Chip
Power Button
Technical Specifications
Transmitter Technical Specifications
| Model | MAX |
| Number of Buttons | 6 |
| Maximum Extracted Power | 36 mW |
| Supply Voltage | 3 VDC |
| Operating Frequency | 2.4 GHz ISM Band |
| Number of Channels | 80 |
| Operating Range | 100 m |
| RF System Output Power | 10 mW ERP (Internal Antenna) |
| Operating and Storage Temperature | -40 °C to +85 °C |
| External Housing Protection Degree | IP 65 |
| Body Material | Polyamide |
| Button Diameter | 20 mm |
| Battery | 2xAA Alkaline Battery |
| Continuous Operation with Fully Charged Battery | ≥ 240 hours |
| Operating Time After Low Battery Warning | 30 minutes |
| 6 Button (Including Batteries) | 0.345 kg |
Receiver Technical Specifications
| Model | MAX |
| Maximum Extracted Power | 10 W |
| Supply Voltage | 48-110-220 VAC / (15~35 VAC / 15~50 VDC) (Standard) |
| Optional Supply Voltage | 380 VAC (Optional) |
| Operating Frequency | 2.4 GHz ISM Band |
| Number of Channels | 80 |
| Operating Range | 100 m |
| Start Relay Response Time | ≤ 65 ms |
| Command Relay Response Time | ≤ 65 ms |
| Passive Emergency Response Time (EGM Passive) | ≤ 70 ms |
| Operating and Storage Temperature | -40 °C to +85 °C |
| External Housing Protection Degree | IP 65 |
| Body Material | Polyamide |
| Maximum Capacity of Control Relays | 10A 250VAC |
| Maximum Capacity of Status Relays | 8A 250VAC |
| Weight (Including Box) | 2.2 kg |

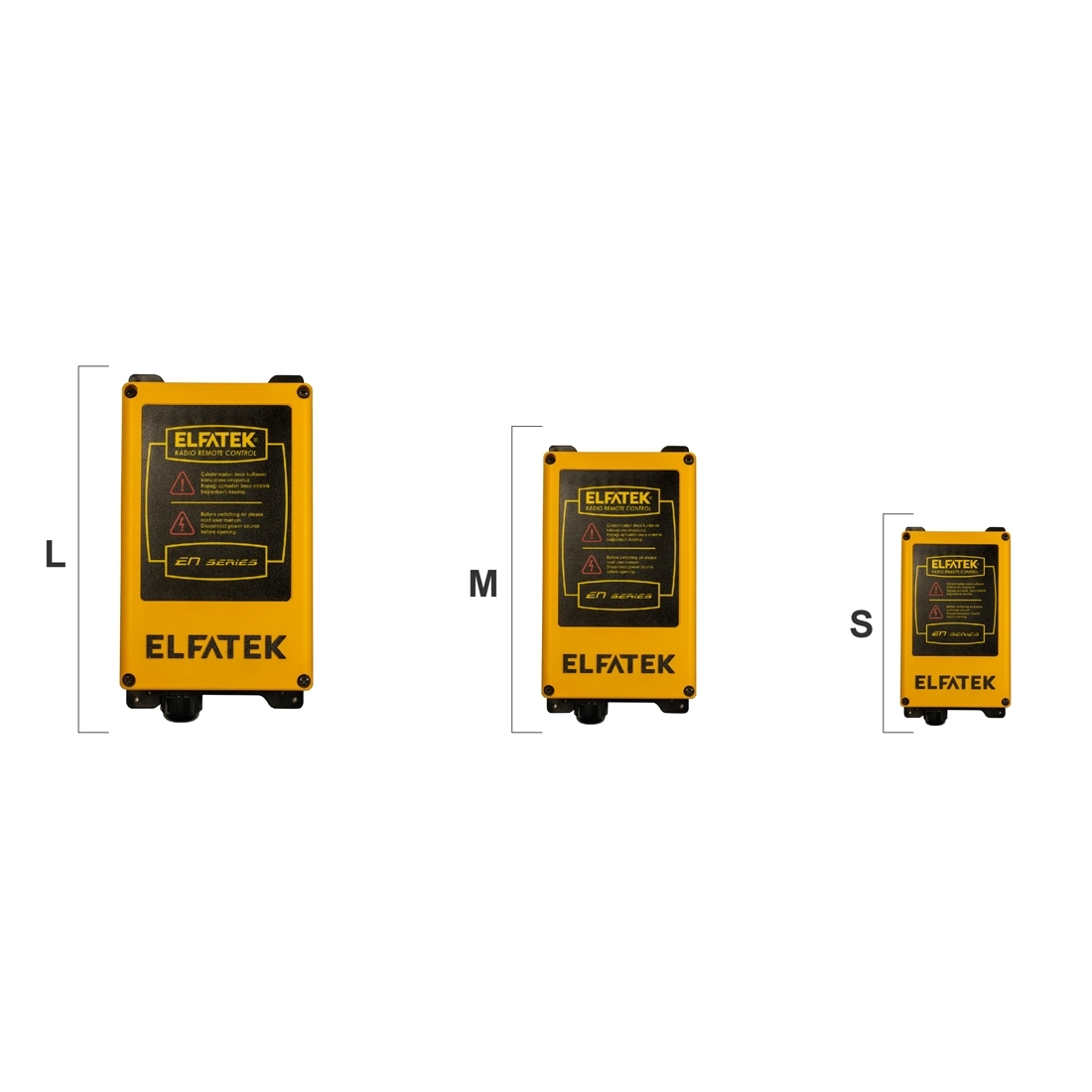

| Small Size (HxWxD) | 235x150x120 mm |
| Medium Size (HxWxD) | 320x170x120 mm |
| Large Size (HxWxD) | 335x195x130 mm |
